Flow Meter

Materials of Construction

Materials of Construction

Tube : Borosilicate Glass

Float : SS316, PTFE, other on request

Packings : Neoprene, PTFE, Silicon, VITON

End Fitting : Mild steel, Carbon steel, SS304, SS316, CF-8M, CF8, Cast Iron PTFE lined, SS lined, PVC, and any other desired material subject to its availability.

Frame & Cover : Mild Steel, SS (optioonal)

For more features & specifications please contact us at info@LPM-Tech.com

Materials of Construction

“MT” series Rotameters are all Metal Variable Area Type Flow Meter designed to measure flow rate of liquids and gases under critical conditions. It consists of a tapered metal tube, an indicating assembly and float. A magnet encapsulated in float couples with rotating magnets connected to an indicating pointer as show in figure. Thus the movement of the float, is accurately indicated in terms of flowrate.

Engineering Specifications

Rangeability : 10:1

Accuracy : +2% of Full Flow, +1.5% of Full Flow (optional) Better Accuracy on request

Repeatability : 0.5%

Scale Length : 900 Angular

Pressure Rating : 40 Bar, 250 Bar (optional)

Allowable Fluid Temp. : -200 to 2500 C

Connection : Flanged, Threaded, Sanitory fitting

Material of Construction : SS316, SS316L, SS304, Hastelloy C

Indicator Box : ABS, PC, Cast AL, SS (optional)

Protection Class : IP-65 & IP-66 & Other Protection on request (For MT model encloser exproof IIA and IIB/IIC as per requirement) CCOE certificate for IIC Box

For more features & specifications please contact us at info@Formonix.com

Materials of Construction

Design material:

Flange : Carbon steel / Stainless steel Housing: Carbon steel / Stainless steel Lining : PTFE / Rubber

Electrode: stainless steel, Hastelloy, Titanium, Tantalum, etc.

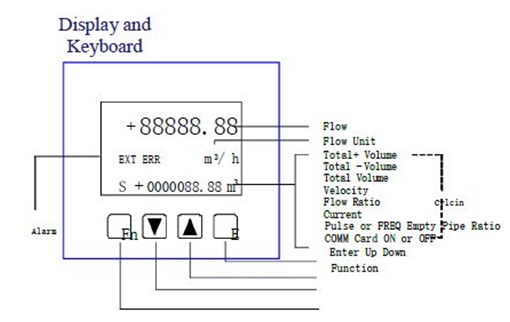

Tech. Specification:

Nominal diameter of the pipeline, DN : 10 TO 1000 mm Accuracy : 0.5%

Repeatability : 0.5

Maximum pipeline pressure : 25 bar / 40 bar on request Minimum conductivity : 5 μS/cm

Fluid temperature range : -10 to 100/150 °С Ambient temperature range : -25 to 70 °С Protection : IP-67/ EX

Power supply : Battery operated

: 24v DC

: 110 / 230 V AC

Outputs:

4-20 mA analog output;

Pulse outputs

RS-485 interface

HIGH & Low alarm output

For more features & specifications please contact us at info@Formonix.com

Materials of Construction

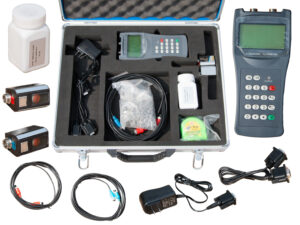

Technical specifications

Flow indicator and totalizer.

4-20 mA analog output.

Alarm outputs..

Precision : ± 1.5% of reading ± 0.02 m/s

Repeatability : +± 0.25% of reading ± 0.01 m/s

Speed ​​range : 0.2… 12 m/s

Feeding : 85… 265 VAC 50, 60 Hz

Diameters : DN80… DN2000

Protection index : IP65

Connections : Clamp on, on the outside of the pipe

Materials : Transducers material: Aluminum + PEEKConverter material: ABS

Temperature range : 20… + 80ºC

For more features & specifications please contact us at info@Formonix.com

Materials of Construction

Technical specifications

Output 4-20 mA /0 … 1000 Hz.

Totalizer.

Flow indication.

Measuring range : 2 m3/h … 113000 m3/h H2O

Accuracy : =±3,5%

Connections : DN40 … DN2000TF or DIN flange2 ¼” BSP Threaded

Materials : Body: EN 1.4404 (SS 316L), PVDFSensor head: PVDFElectrodes: Hastelloy C, EN 1.4404, Zr, Ti y Tantalum

Options : High pressure design on request (only for flange connection)Other flange standard on request.HART ™ protocol on request

For more features & specifications please contact us at info@Formonix.com

Materials of Construction

tex

tex

Materials of Construction

Hwkwr

Hwkwr

Materials of Construction

Yyy

Ggy

Technical specifications

Flow indicator and totalizer.
4-20 mA analog output.
Alarm outputs..

Precision : ± 1.5% of reading ± 0.02 m/s
Repeatability : +± 0.25% of reading ± 0.01 m/s
Speed ​​range : 0.2… 12 m/s
Feeding : 85… 265 VAC 50, 60 Hz
Diameters : DN80… DN2000
Protection index : IP65
Connections : Clamp on, on the outside of the pipe
Materials : Transducers material: Aluminum + PEEKConverter material: ABS
Temperature range : 20… + 80ºC

For more features & specifications please contact us at info@Formonix.com

Technical specifications

Output 4-20 mA /0 … 1000 Hz.
Totalizer.
Flow indication.

Measuring range : 2 m3/h … 113000 m3/h H2O
Accuracy : =±3,5%
Connections : DN40 … DN2000TF or DIN flange2 ¼” BSP Threaded
Materials : Body: EN 1.4404 (SS 316L), PVDFSensor head: PVDFElectrodes: Hastelloy C, EN 1.4404, Zr, Ti y Tantalum
Options : High pressure design on request (only for flange connection)Other flange standard on request.HART ™ protocol on request

For more features & specifications please contact us at info@Formonix.com
